General Description

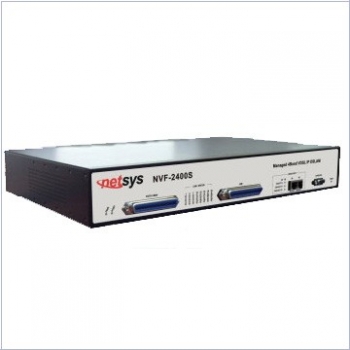

The NVF-2400S is a VDSL IP DSLAM that aggregates 24 lines of 4-band Very-High-Data-Rate Digital Subscriber
Line (VDSL) into Giga Ethernet uplinks for high-speed data/Internet services.
Based on QAM-based 4-band VDSL technologies, NVF-2400S extends data service with line rate of solution for
services such as remote lecturing, telemedicine, video conferencing, Video-on-Demand (VoD), IP-TV etc. Internet
access, and other various high-speed data applications.
When the number of subscribers increases, the second uplink fast Ethernet interface can be used to daisy chain to
another NVF-2400S. Alternatively, multiple NVF-2400S can be connected to another LAN switch to form a two-tier
configuration, thus supporting a lot more subscribers. The NVF-2400S is an ideal solution for delivering cost-
effective, high-performance broadband/multimedia services to Multi-Tenant Units (MTUs) or Multi-Dwelling Units
(MDUs) such as hotels, campus, hospitals and telecom.

Key Features & Benefits
Supports bandwidth management (speed rate control) from 100K to 5M/15M/25Mbpsfor VDSL port with long
driver capable up to 1.7/1.1/0.6Km (5666/3666/1999 feet)
Supports GARP/GVRP IEEE-802.1p/q tagging VLAN, IEEE 802.1v protocol VLAN, port base VLAN
Supports quality of phone wiring detected with SNR (Signal to Noise Ratio)indications
Supports QOS IEEE-802.1p
Supports IGMP V2 snooping, BOOTP/DHCP Client, bandwidth control
Supports LACP IEEE-802.3ad Port Trunking
Supports IEEE 802.1d Spanning Trees
Supports Port Mirroring (Sniffer) and Broadcast Storm filtering
Supports 802.1x Port Based Network Access Control
Supports Web Base and Telnet for remote management
Supports SNMP v1 RFC-1493 Bridge MIBs, RFC-1643 Ethernet MIB, RFC-1213 MIB II,Enterprise MIB
Supports RMON groups 1, 2, 3, 9 (RFC-1757 RMON MIB)
Supports TFTP/XMODEM for firmware upgrade
Supports In-Band/Out-of-Band Management
Supports RS-232 console port for functions setup (DB-9Pin Female / 9600bps)
Spectral compatibility with XDSL, ISDN (2B1Q/4B3T), HomePNA.
Supports IEEE802.3, IEEE802.3u,IEEE802.3ab Standards.
Compliant with ETSI, ITU, ANSI standards
Interface:2 * RJ-45 10/100/1000Mbps Ethernet port / 24 * RJ-21 connector for VDSL connection
24 * RJ-21 connector for POTS/ISDN connection
Flow control method by IEEE802.3x for Full Duplex & Back Pressure for Half Duplex
MAC address table:6K Entries
VDSL Frequency Spectrum: Transmitter: 900 KHz ~ 3.9MHz / Receiver: 4MHz & 7.9MHz
POTS/ISDN pass filter Spectrum:0 ~ 630Khz
Operating Temperature:0°C ~ 50°C (41°F ~ 122°F)
Storage Temperature:-20°C ~ 65°C (-4°F ~ 149°F)
Humidity:10 to 90% (non-condensing)
Dimensions:434 x 299 x 66 mm

Optional:

• 50-Pair Telco Cable, 10m Draka Cable incl. Patchpanel for Netsys NVF-2400S
• 10m Telco Cable for Netsys NVF-2400S
