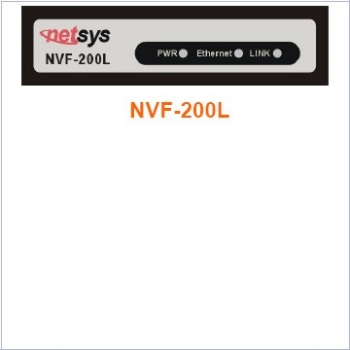

 Netsys NVF-200L - 4Band VDSL CO VDSL Modem (Master)


Print product data sheet

Goods on stock *





General Description
The NVF-200L/R works as Ethernet to/from VDSL subscriber-site conversion bridge. The NVF-200L/R uses QAM-based 4-Band VDSL technologies. Which supports 5M/ 15M/25Mbps per port symmetrical bandwidth over phone wiring with long driver capable of a maximum 1.9/1.3/0.8Km(6327/4333/2666 feet).
The NVF-200R also works with NVF-800S & NVF-2400S VDSL IP DSLAM, together to from a cost-effective solution for services such as remote lecturing, telemedicine, video conferencing, Video-on-Demand (VoD), IP-TV etc. Internet access, and various high-speed data applications.

The front-panel provide LEDs indication of system and interface status. The built-in POTS/ISDN splitter allows a standard POTS phone or ISDN device to be connected. Full or half-duplex mode of LAN operations is automatically sensed and configured. VDSL link rates are configured by local IP DSLAM over the auto-speed function. Therefore, NVF-200L/R supports auto-speed, plug & play operations on the subscriber-site, and are part of an ideal slution for delivering cost-effective, high-performance broadband/multimedia services to Multi-Dwelling Units (MDU) and Multi-Tenant Units (MTU) environments such as hotels, campus, hospitals and telecom.

Key Features & Benefits Compliant with IEEE802.3 10BASE-T standard.
Compliant with IEEE802.3u 100BASE-TX standard.
Compliant with ETSI, ITU, ANSI standards.
Supports plug & play, you don't need to do any setting.
Supports 5M/15M/25Mbps symmetrical bandwidth over phone
wiring with long driver capable 1.9/1.3/0.8Km(6327/4333/2666 feet).
Supports 1 * RJ-11 connector for Ethernet over VDSL.
Supports 1 * RJ-11 connector for telephone/PBX connection.
Supports 1 * RJ-45 port for 10/100Mbps Ethernet with Auto MDI/MDIX.
Support Auto-speed & full duplex for VDSL port.
Voice and Data work on the same telephone line.
Spectral compatibility with xDSL, ISDN (2B1Q/4B3T).
Supports flow control IEEE802.3x for Full Duplex & Back Pressure for Half Duplex.
Supports long packet size up to 1536 Bytes.
Supports POTS/ISDN voice pass.
Supports 4wires phone set pass through.
Splitter on board
Supports Surge protection.
Provides Power LED.
Provides LED indication Link/Active Status for Ethernet port and Link/Speed for VDSL port.
External switching power adapter Input: AC 85-240 volts/50-60Hz; Output: DC 5V/1A or above.
Metal case & mini size design
Safety by CE, FCC
RoHS compliant
VDSL Frequency Spectrum:NVF-200R_ Transmitter: 4MHz ~ 7.9MHz. Receiver: 0.9MHz ~ 3.9MHz
POTS/ISDN pass filter Spectrum: 0 ~ 630KHZ
Power Consumption: 6W
Operating Temperature: 0°C ~ 50°C (41F ~ 122F)
Storage Temperature: -20°C ~ 65°C (-4F ~ 149F)
Humidity: 10 to 90% (non-condensing)
Dimensions: 95 x 110 x 24 mm(3.74" x 4.33" x 0.94").
Weight: about 313.5g (net)
incl. 19% VAT + shipment
(**)


133.00 EUR
