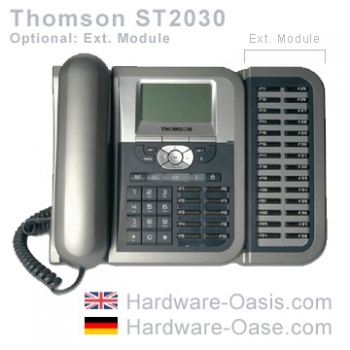

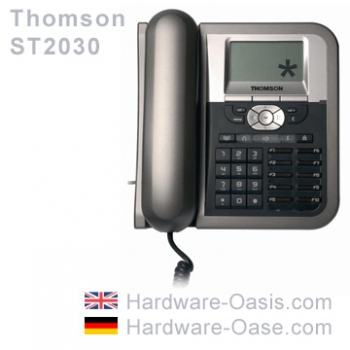

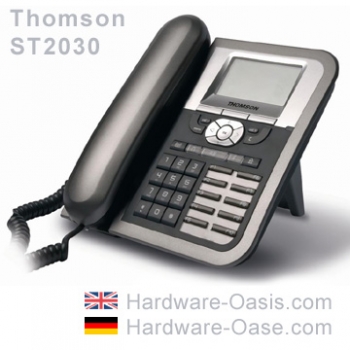

ST2030 IP-Phone (SIP / MGCP)

Print product data sheet

Goods on stock *

The SpeedTouch 2030 offers a high quality IP solution at a cost effective price making Voice over IP (VoIP) more accessible for businesses.

The SpeedTouch 2030 is a VoIP phone that is SIP/MGCP compliant and can be used with any SIP compliant PBX, Softswitch or IP Centrex solutions of the market. It adresses the need for a cost effective IP solution, helping to make VoIP a viable, attractive option for small or large offices environment.

The SpeedTouch 2030 includes the main following features:

128*64 full graphic display
Connectivity: Integrated two port 10/100 Ethernet switch
Phone services:
> Multilines, Call Forward, Call Transfer, Call Hold, Call Waiting, Redial
> Handsfree
> Alert (missed calls, Message Waiting Indicator)
> 10 Speedial keys/ Supervision backlighted keys (MGCP)
> Phonebook (100 entries)
> Caller ID display
> Automatic Callback
Audio extension connection: Integrated headset RJ9 port
3 ways conferencing
Extension module (28 additional backlighted keys)
Polyphonic rings
Multiple power options: power over Ethernet 802.3af and external power supply adapter
VoIP Standard: SIP V2 (RFC 3261) or MGCP
Voice compression standards: G.711, G.723, G.729ab
IP addressing: Static or Dynamic IP configuration (integrated DHCP client)
Quality of Service: ToS Diffserv, 802.1p/Q, VAD, CNG, Packet Loss Compensation, Adaptative Jitter Buffer
Web browser interface for configuration and firmware upgrade (admin & user mode)
SNMP
Automatic Provisioning System (DHCP, TFTP/HTTP)
5 Languages

TECHNICAL SUMMARY
Key Features
5 languages (English, French, Spanish, German, Italian)
SIP V2 compliant or MGCP
128x64 full graphic display
2 RJ45 Ethernet Switch
Power over Ethernet 802.3af standard
Handsfree
Navigation keys
3 soft keys
10 Multi-Lines backlighted
Extension module
Headset support

Phone Set
Function Support
Redial
Speed dial (10 direct memories)
Multiple call operation
Alert (missed calls, message Waiting) Indicator
Mute
Hold
Transfer
Forward
On-hook dialing
Handsfree
Call Log (30 entries; incoming/outgoing calls)
Address book (100 indirect memories)
16 polyphonic rings
Caller ID Display
Do Not Disturb
Volume control (speaker, handset, headset & ringer)
Date & time display (idle state)
Call duration timer
Dial from Call log

Key Pad
30 keys
3 soft keys, Volume Up & down, Menu and Cancel keys
10 backlighted programmable keys
2 fixed function keys (redial, phonebook)
3 fixed backlighted function keys (mute handsfree, headset)
LED Indicator
4Bicolor LED Indicator (Voice mail, Alert, ...)
Interfaces
2 RJ-45 auto-sensing 10/100Mbps (one for PC and one for LAN)
Technical Specifications
VoIP Protocol Support
SIP (RFC 3261) or MGCP

Audio Code
G.711 μ-law/A-law
G.723.1
G.729ab
Internet Support
IP (RFC0791), TCP (RFC0793), UDP (RFC0768), ARP (RFC0826) protocols
DHCP client (RFC2131)
SDP
TFTP
HTTP
DNS
NTP
SNMP
Embedded switch VLAN Support
VLAN segregation (Data VLAN for PC and Voice VLAN for the phone)
Security and quality increased
Ethernet
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
Quality of Service
ToS Diffserv, 802.1p/Q
VAD, CNG, Packet Loss Compensation, Adaptative Jitter Buffer
Dial Tone Signal Generation DTMF (Out of Band and In Band) RFC 2833

Configuration
IP Adress Assignment
DHCP client or fixed

Configuration Support
Keypad & LCD
Web browser management with 2 Levels (User and Admin)
TFTP/HTTP server download
Local & remote warm reboot
Configuration protected by Password

Physical & Environmental
Mounting
Footstand
Power Input
DC 48V
Power Input :
- 100V/60Hz to 220V/50Hz full range autoswitching
- Power over Ethernet (802.3af)

Operating Temperature
from 0o to 50o C (32o / 104o F)

Storage Temperaturefrom-5o to 80o C (-40o / 158o F)

Humidity
up to 95% non-condensing

Delivered with AC Adapter
No additionnal licence fee

Optional Headset:

incl. 19% VAT + shipment
(**)

99.90 EUR

For further information, please visit the homepage of this product.
